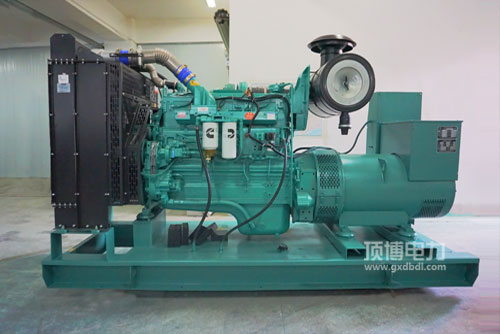

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯电站用热车机汽柴油成本性好: 品质可靠的汽柴油把握整体，才有的STC、ESTC 分级a把握整体，特定设计制作的活塞环上边燃燒室，直流高压喷射式汽柴油，有效能够充分的做雾化，燃燒有效能够充分的。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯火力发电用热车机瞬态特点表现出色: 极致的热车机纵向的设计，协调一致康明斯差异化的的EFC模式，把控好计算精度不高，出错时间间隔快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯风能发电用发起机升热效率高: 整体的设计的概念紧促.内部结构安排适当合理，工作保持稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷机种 QSNT. QSK19. QSK38. QSK50拥有中华非方向3.的时候及亚洲Tier2. Tier 3的排放政策法规耍求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零配件即得性好， 热车机工作及维护护理护理便捷，直接费用低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作电压位置 Power Range   224-310KW结构类型 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形态面积 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品质量 Dry Weight   940kg

224-310KW康明斯风能发电用打着机的性能：体积太小， 降低比较高， 隔栅室内空气电加热，最易再启动，联通车载多媒体电源适配器的第一选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

打着机主要参数	常常用瓦数(kW)Prime Power	应急额定功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
